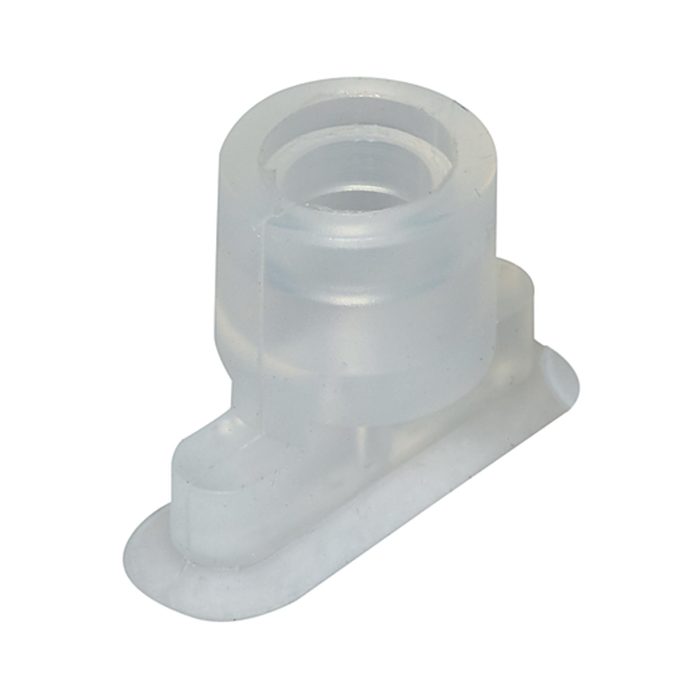

RIEGLER Flat suction cup, oval, Silicone material, »SGO« Ø18x6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Oval flat suction cup for vacuum technology - type SGO 1806-2
The RIEGLER flat suction cup oval, SGO ø: 18x6, silicone lifts and transports workpieces safely by vacuum. Suction force 4.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 18x6 mm |
| Suitable connection nipple IG | M5 |
| Suitable connection nipple AG | M5 |
| Overall height with nipple IG | 22.0 mm |
| Overall height with nipple AG | 17.0 mm |
| Suction power | 4.5 N |
| Volume | 0.058 cm³ |
| Workpiece radius convex min. | 4 mm |
| Recommended hose Ø | 2 mm |
