RIEGLER Flat suction cup, oval, Silicone material, »SGO« Ø45x15

https://staging-filcom-16.laminfra.de/web/image/product.template/192380/image_1920?unique=d4441e6

21.31 € 21.31 EUR 21.31 € VAT Included

17.91 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

108483

EAN :

4047322203401

Category :

Suction Pads

Weight :

0.10 kg

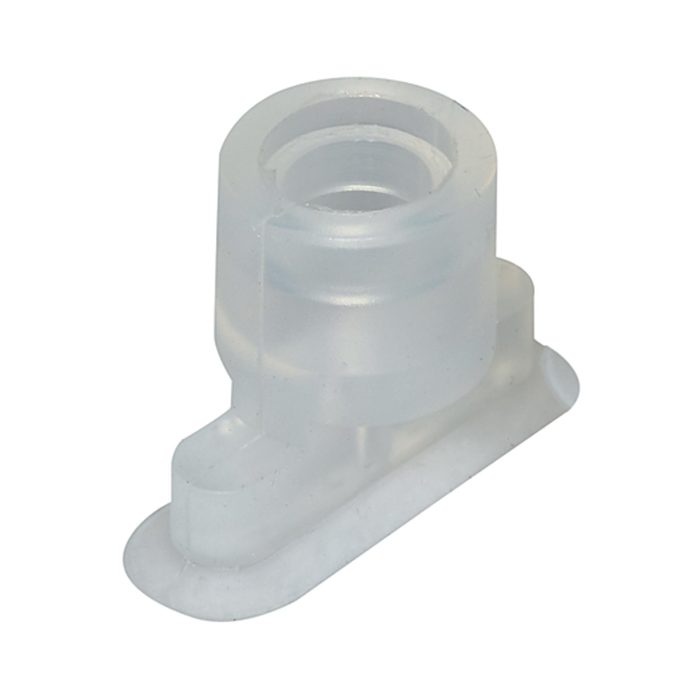

RIEGLER Oval flat suction cup for vacuum technology - type SGO 4515-2

The RIEGLER flat suction cup oval, SGO ø: 45x15, silicone lifts and transports workpieces safely by vacuum. Suction force 28.2 N. Gentle workpiece handling without mechanical clamping.

Field of application

Typical areas of application: Robotics, packaging technology and automated handling.

Diameter 45x15 mm
Suitable connection nipple IG G 1/4
Suitable connection nipple AG G 1/4
Overall height with nipple IG 36.0 mm
Overall height with nipple AG 26.0 mm
Suction power 28.2 N
Volume 0.98 cm³
Workpiece radius convex min. 10 mm
Recommended hose Ø 6 mm
