RIEGLER High performance silencer G 1 1/4, Supply pressure max. 6 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

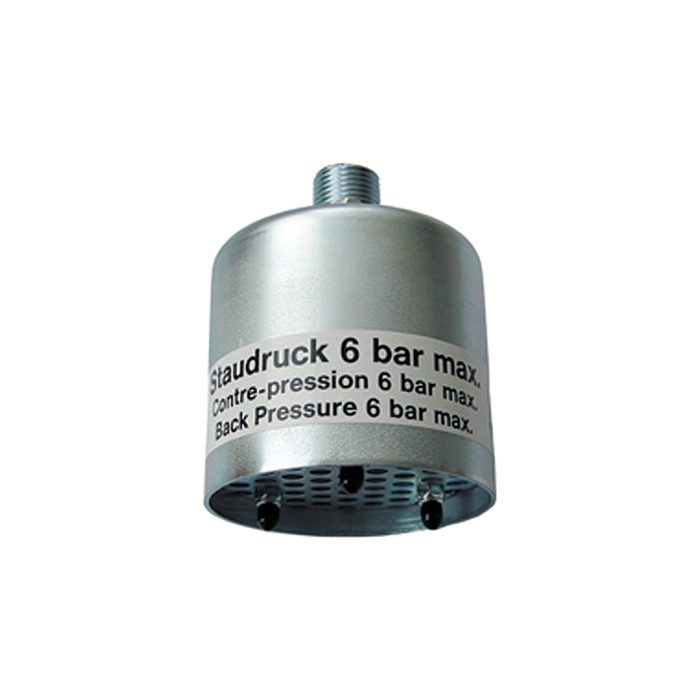

RIEGLER High-performance silencer made of galvanized sheet steel, for noise protection, G 1 1/4 - type 570-4
The RIEGLER high-performance silencer G 1 1/4, galvanized sheet steel significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of galvanized sheet steel. The maximum inlet pressure is 6 bar. The operating temperature is between -10 °C and 90 °C. Connection thread G 1 1/4 - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Inlet pressure max. | 6 bar |
| Housing | Galvanized sheet steel |
| Material | Galvanized perforated sheets, polyester felt washers |
| Installation position | any |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1 1/4 |
| Flow rate at 6 bar | 31700 l/min |
| A | 20 mm |
| B | 136 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Theme shop | SAFETY |
| Class name | PLUS |
