RIEGLER High performance silencer G 1 1/2, Supply pressure max. 6 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER High-performance silencer made of galvanized sheet steel, for noise protection, G 1 1/2 - type 570-5
The RIEGLER high-performance silencer G 1 1/2, galvanized sheet steel significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of galvanized sheet steel. The maximum inlet pressure is 6 bar. The operating temperature is between -10 °C and 90 °C. Connection thread G 1 1/2 - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Inlet pressure max. | 6 bar |
| Housing | Galvanized sheet steel |
| Material | Galvanized perforated sheets, polyester felt washers |
| Installation position | any |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1 1/2 |
| Flow rate at 6 bar | 53400 l/min |
| A | 24 mm |
| B | 168 mm |
| C | 150 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Theme shop | SAFETY |
| Class name | PLUS |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[113298] RIEGLER High performance silencer G 1 1/4, Supply pressure max. 6 bar](/web/image/product.template/186199/image_128/%5B113298%5D%20RIEGLER%20High%20performance%20silencer%20G%201%201-4%2C%20Supply%20pressure%20max.%206%20bar?unique=d4441e6)
|
132.67 € | ||
![[113295] RIEGLER High performance silencer, G 1/2, Supply pressure max. 6 bar](/web/image/product.template/186196/image_128/%5B113295%5D%20RIEGLER%20High%20performance%20silencer%2C%20G%201-2%2C%20Supply%20pressure%20max.%206%20bar?unique=d4441e6)
|
75.92 € | ||
![[113297] RIEGLER High performance silencer, G 1, Supply pressure max. 6 bar](/web/image/product.template/186198/image_128/%5B113297%5D%20RIEGLER%20High%20performance%20silencer%2C%20G%201%2C%20Supply%20pressure%20max.%206%20bar?unique=d4441e6)
|
123.28 € | ||

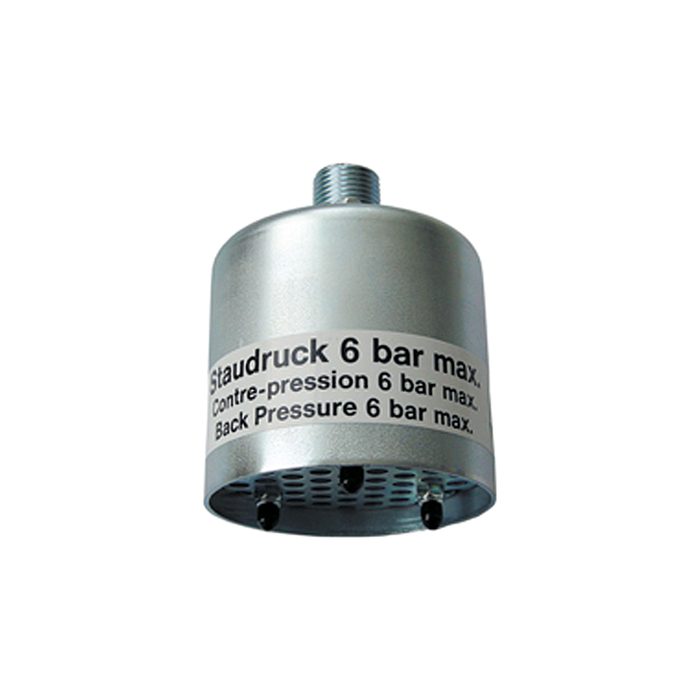

![[113300] RIEGLER High performance silencer, G 2, Supply pressure max. 6 bar](/web/image/product.template/186201/image_128/%5B113300%5D%20RIEGLER%20High%20performance%20silencer%2C%20G%202%2C%20Supply%20pressure%20max.%206%20bar?unique=d4441e6)
|
