Condor Pressure Switch MDR 1/6 2,5-6 bar G 1/4" ST-Ü
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch for pumps MDR 1/6 bar 212126
AC version
Switching capacity 4.0 kW
Pressure range 2.5 - 6.00 bar
Incl. cable gland PG 11 Z/ZK
2-pole (NC contact)
In accordance with EN 60947
Differential pressure adjustment optional
Pressure switch type: DSD BAEA 017A030 XDE XXX see further information under Documents.
For required cable glands for retrofitting, see "Accessories".
| Thread / connection | G 1/4" ST-Ü |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 2.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 220 |
| Pressure range (bar) | 2.5 - 6 |
| Model range - Pressure switch | MDR 1 |
| On / Off switch button | No |
Similar Products
| Product | Price | ||
|---|---|---|---|

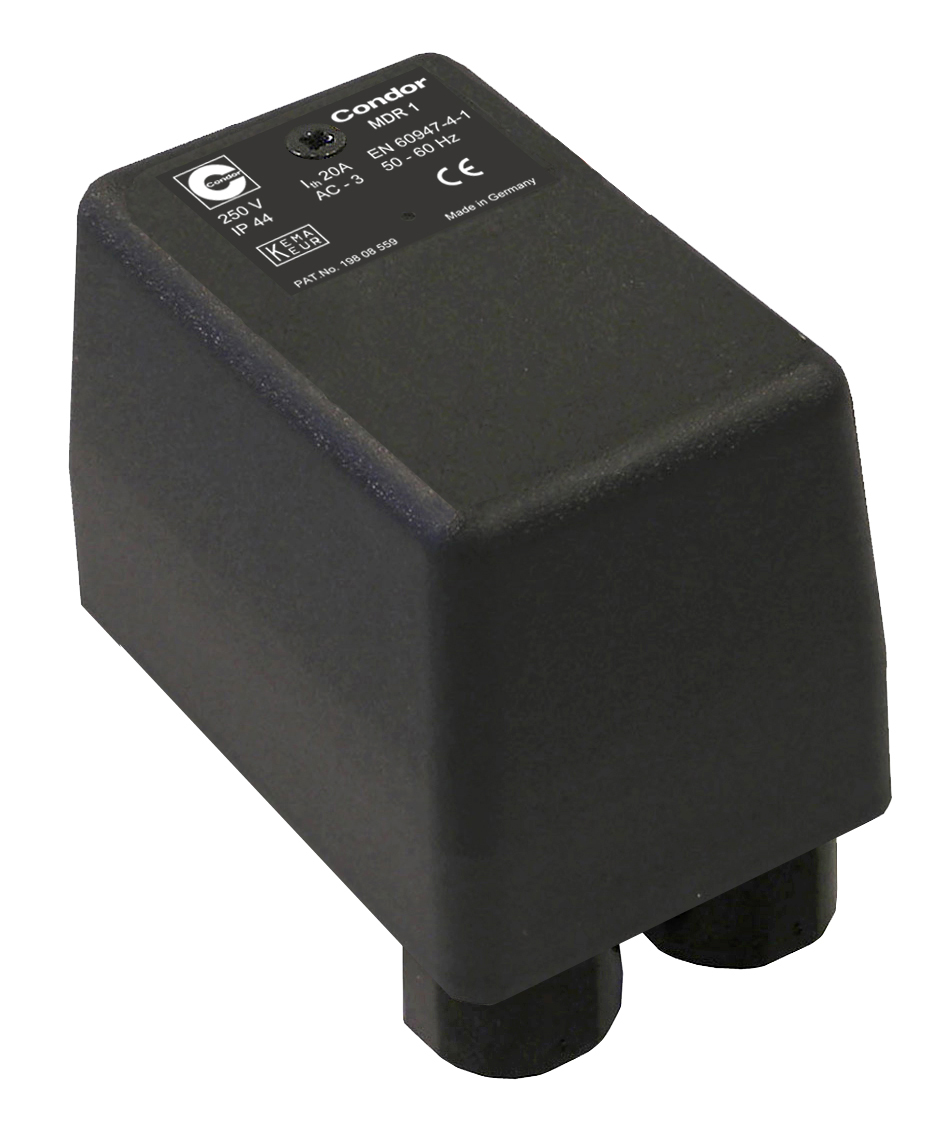

![[212119] Condor Pressure Switch MDR 1/6 2,5-6 bar G 1/4" ST](/web/image/product.template/217966/image_128/%5B212119%5D%20Condor%20Pressure%20Switch%20MDR%201-6%202%2C5-6%20bar%20G%201-4%22%20ST?unique=d4441e6)
|
