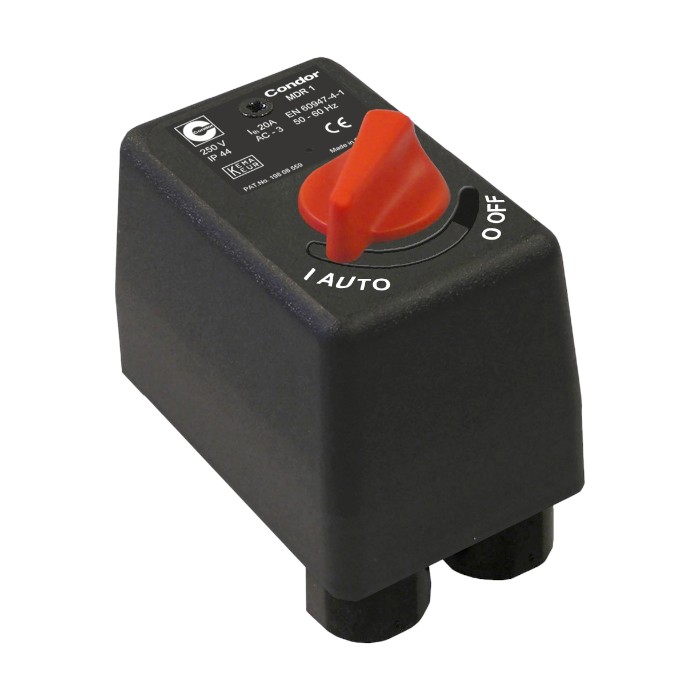

Condor Pressure Switch MDR 1/11 EA 2,5-11 bar G 1/4" Alu
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch for compressor MDR 1/11 bar EA 212133
AC version
Switching capacity 4.0 kW
Pressure range 2.5 - 11.00 bar
Incl. cable gland PG 11 Z/ZK
Incl. start-up relief valve AEV 1S
2-pole (NC contact)
In accordance with EN 60947
Differential pressure adjustment optional
Pressure switch type: GBA AAEA 060A080 QDE XXX see further information under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".
| Thread / connection | G 1/4" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 2.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 220 |
| Pressure range (bar) | 2.5 - 11 |
| Model range - Pressure switch | MDR 1 |
| On / Off switch button | Yes |
