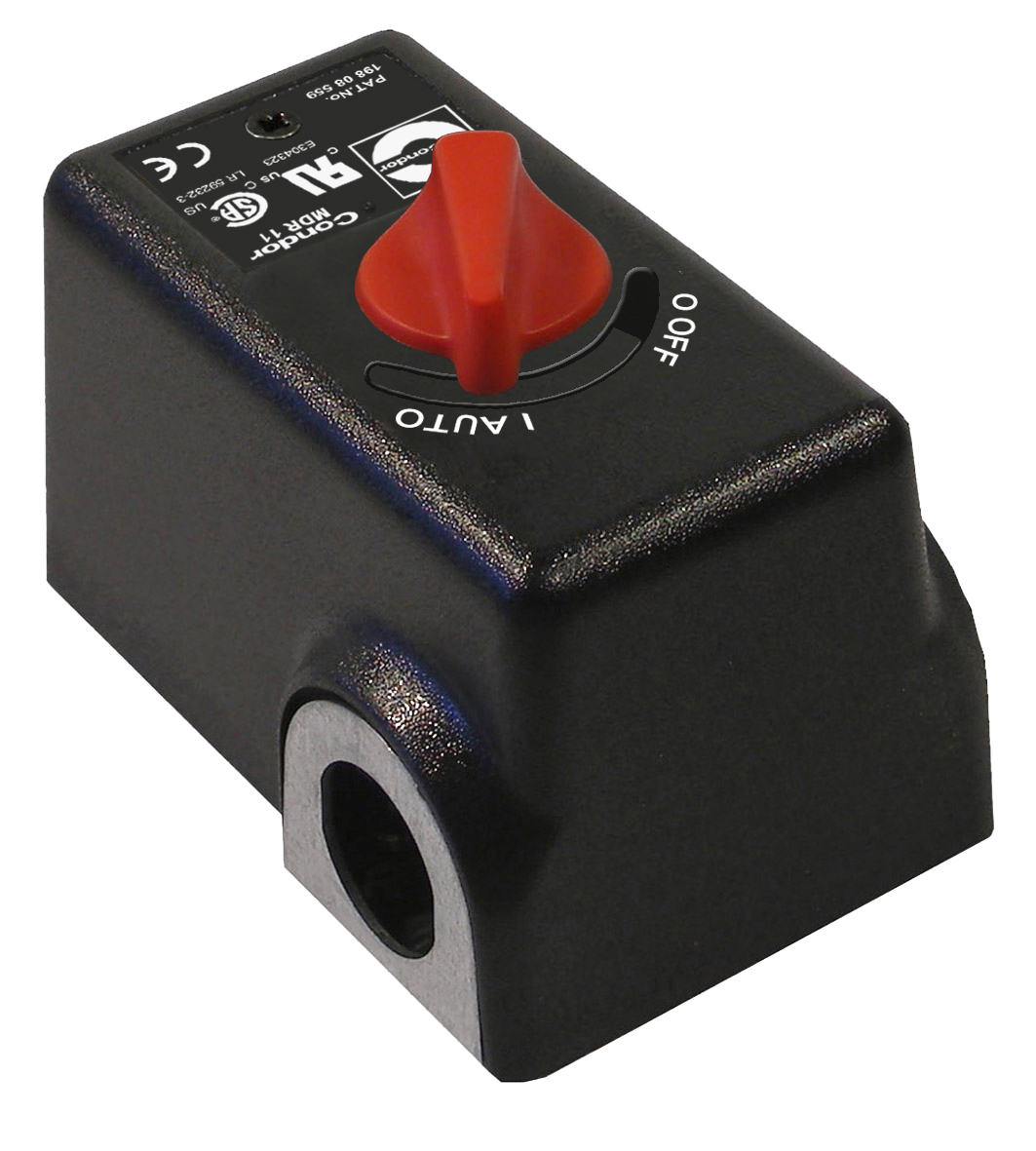

Condor Pressure Switch MDR 11/6 EA 2,5-6 bar G 1/4" ST-Ü
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch for pumps MDR-11/6 bar 235729
AC version
Switching capacity 4.0 kW
Pressure range 2.5 - 6.00 bar
Incl. cable gland PG 13.5 Z/ZK
2-pole (NC contact)
According to EN 60947
UL / CSA approval
Differential pressure adjustment optional
Pressure switch type: DTD AAIA 017A030 XDE XXX see further information
For required cable glands for retrofitting, see "Accessories".
| Thread / connection | G 1/4" ST-Ü |
| Protection class | IP 44, IP 41 |
| Motor switching capacity (kW) | 2.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 320 |
| Pressure range (bar) | 2.5 - 6 |
| Model range - Pressure switch | MDR 11 |
