Condor Pressure Switch MDR 1/11 2,5-11 bar F4 1/4“ Alu
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch for compressor MDR 1/11 bar 216025
AC version
Switching capacity 4.0 kW
Pressure range 2.5 - 11.00 bar
Incl. cable gland PG 11 Z/ZK
Incl. start-up relief valve AEV 1S
2-pole (NC contact)
In accordance with EN 60947
Differential pressure adjustment optional
Pressure switch type: GEA BAEA 060A080 QDE XXX see further information under Documents.
Required relief valves, cable glands for retrofitting, corresponding sealing plugs for connections not required see under "Accessories"
| Thread / connection | F4 1/4" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 2.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 220 |
| Pressure range (bar) | 2.5 - 11 |
| Model range - Pressure switch | MDR 1 |
| On / Off switch button | No |
Similar Products
| Product | Price | ||
|---|---|---|---|

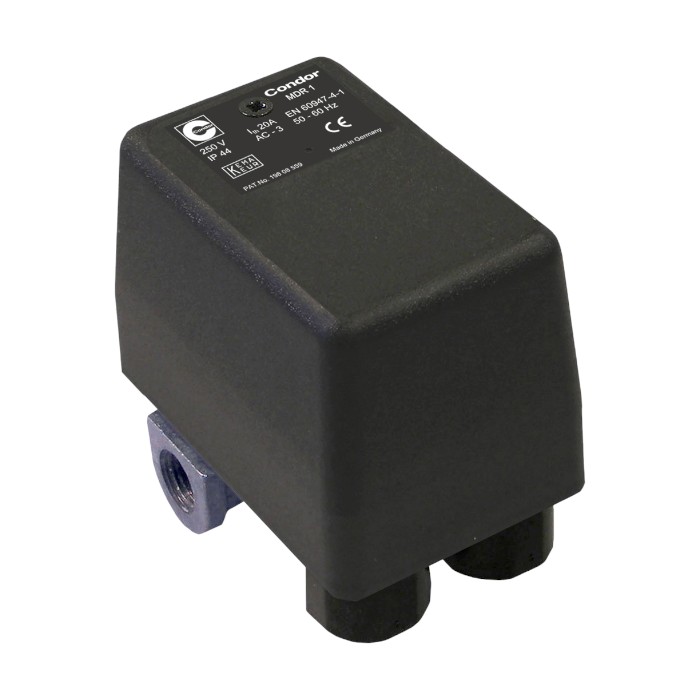

![[216063] Condor Pressure Switch MDR 1/11 2,5-11 bar F4 3/8" Alu](/web/image/product.template/217972/image_128/%5B216063%5D%20Condor%20Pressure%20Switch%20MDR%201-11%202%2C5-11%20bar%20F4%203-8%22%20Alu?unique=d4441e6)
|
121.26 € | ||

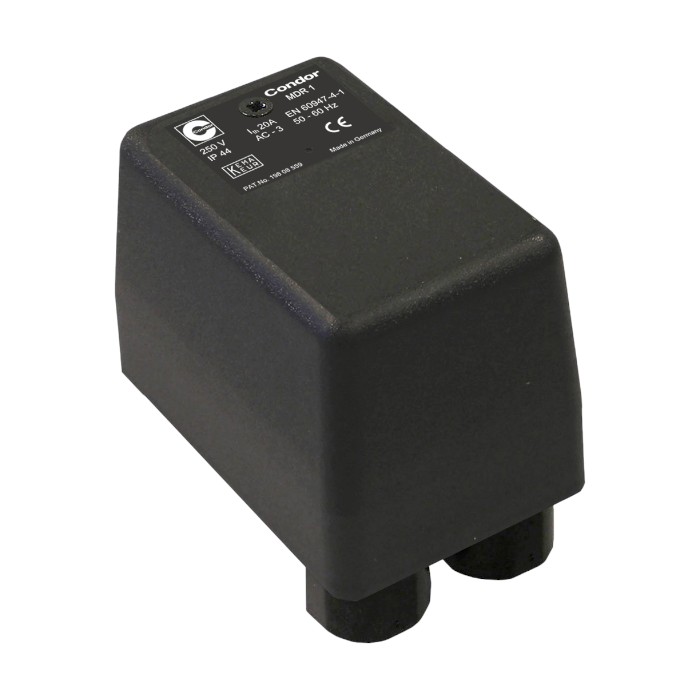

![[216049] Condor Pressure Switch MDR 1/11 2,5-11 bar G 1/4“ Alu](/web/image/product.template/217970/image_128/%5B216049%5D%20Condor%20Pressure%20Switch%20MDR%201-11%202%2C5-11%20bar%20G%201-4%E2%80%9C%20Alu?unique=d4441e6)
|
106.98 € | ||
Accessory Products
| Product | Price | ||
|---|---|---|---|
![[200888] Condor Grommet WN for cable gland MDR 1, 2, 4 und 43](/web/image/product.template/95482/image_128/%5B200888%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%201%2C%202%2C%204%20und%2043?unique=d4441e6)
|
5.47 € | ||
![[217541] Condor Delayed unloader valve AEV 1S with quick-connect 6 mm for plastic unloader valves](/web/image/product.template/95511/image_128/%5B217541%5D%20Condor%20Delayed%20unloader%20valve%20AEV%201S%20with%20quick-connect%206%20mm%20for%20plastic%20unloader%20valves?unique=d4441e6)
|
26.06 € | ||
![[226765] Condor Unloader valve EV 1S with quick-connect 6 mm for plastic unloader valves](/web/image/product.template/95510/image_128/%5B226765%5D%20Condor%20Unloader%20valve%20EV%201S%20with%20quick-connect%206%20mm%20for%20plastic%20unloader%20valves?unique=d4441e6)
|
19.87 € | ||

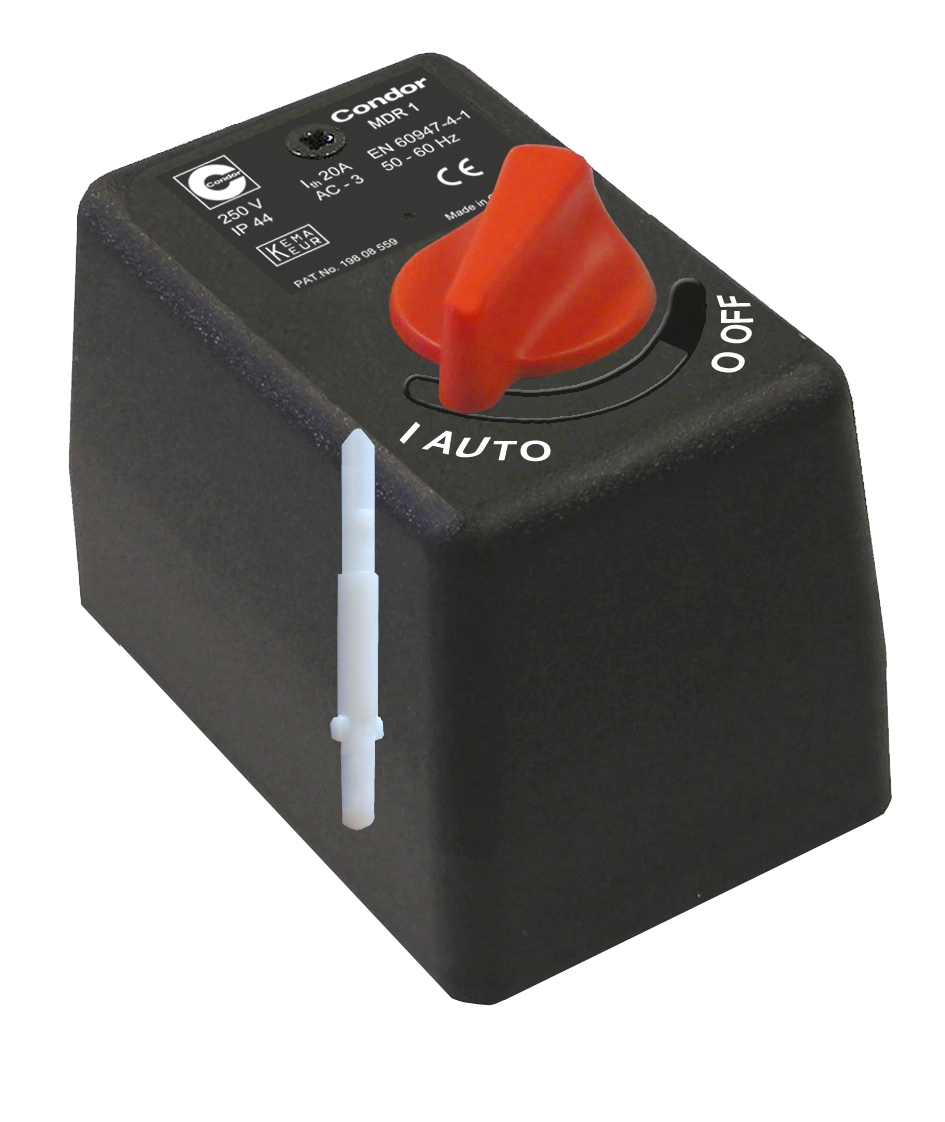

![[230717] Condor Conversion kit H1 to cover H1-EA](/web/image/product.template/95517/image_128/%5B230717%5D%20Condor%20Conversion%20kit%20H1%20to%20cover%20H1-EA?unique=d4441e6)
|
