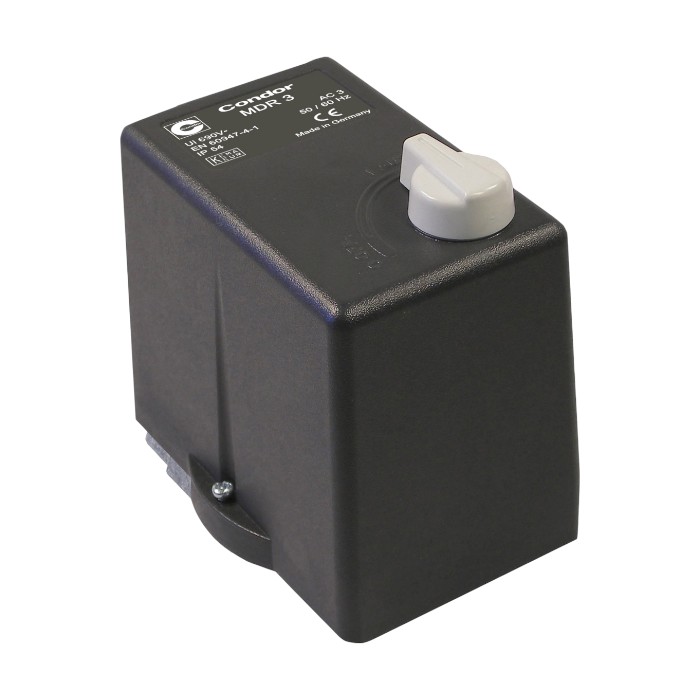

Condor Pressure Switch MDR 3/16 EA 6-16 bar G 1/2" Alu

Price:

162.32 €

English (US)
  2. Shop
  3. Condor MDR 3
  4. Condor Pressure Switch MDR 3/16 EA 6-16 bar G 1/2" Alu

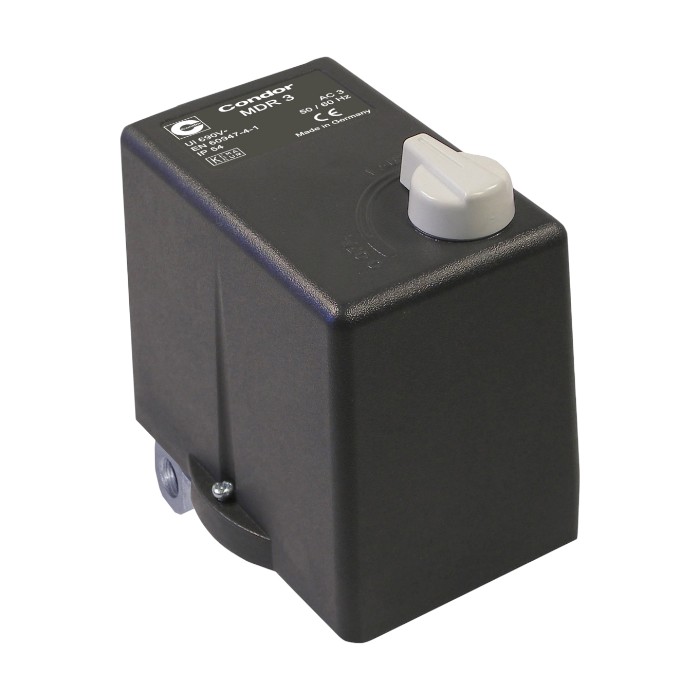

Condor Pressure Switch MDR 3/16 EA 6-16 bar F4 1/2" Alu
Condor Pressure Switch MDR 3/16 EA 6-16 bar F4 1/2" Alu
177.31 € 177.31 €
Condor Pressure Switch MDR 3/11 EA 4-11 bar F4 1/4" Alu
Condor Pressure Switch MDR 3/11 EA 4-11 bar F4 1/4" Alu
153.15 € 153.15 €

Condor Pressure Switch MDR 3/16 EA 6-16 bar G 1/2" Alu

https://staging-filcom-16.laminfra.de/web/image/product.template/217549/image_1920?unique=d4441e6

162.32 € 162.32 EUR 162.32 € VAT Included

136.40 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Condor-Werke

Condor-Werke

The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology

Product no. :

212317

Category :

Condor MDR 3

Weight :

0.61 kg

Condor pressure switch MDR 3/16 bar EA 212317 incl. SK 3-S switching chamber with switching lock (included in the basic equipment of the MDR 3)

Three-phase version
Switching capacity 7.5 (11) kW / 20 HP
Suitable overcurrent relays available, see "Accessories"
Pressure range 6.00 - 16.00 bar
3-pole (NC contact)
According to EN 60947
UL / CSA approval

Pressure switch type: HAA AAAA 130A160 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".

Thread / connection G 1/2" aluminum
Protection class IP 54
Motor switching capacity (kW) 7.5 kW (11kW - on request)
Max. media temperature (°C) 80°C
Current version Three-phase current
Type of construction Electro-mechanical
Tension ≤ 400 V
Contact function 3-pole (normally closed contact)
Rated frequency 50 Hz / 60 Hz
Weight (in g) 610
Pressure range (bar) 6 - 16
Model range - Pressure switch MDR 3
On / Off switch button Yes
Condor Betriebsanleitung MDR 3
Download
Condor Datenblatt MDR 3
Download
