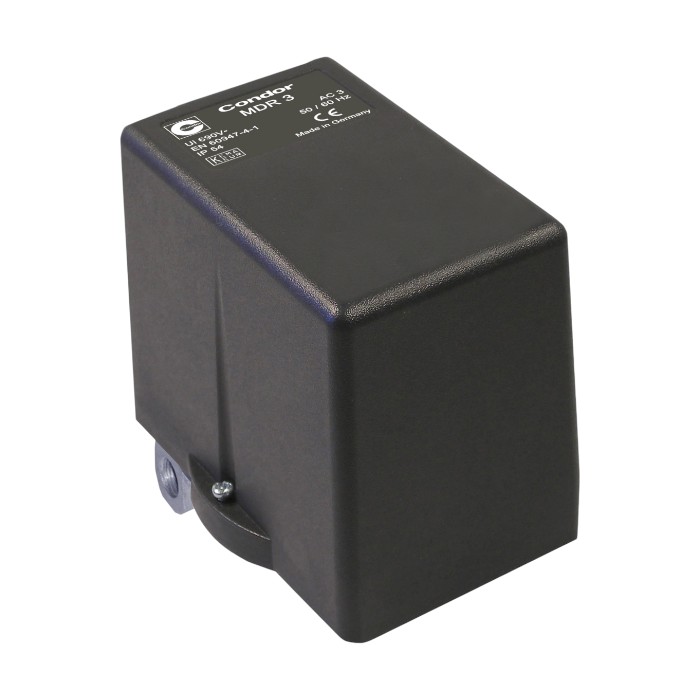

Condor Pressure Switch MDR 3/16 EA 6-16 bar F4 1/4" Alu
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 3/16 bar EA 212331 incl. SK 3-S switching chamber with switching lock (included in the basic equipment of the MDR 3)
Three-phase version
Switching capacity 7.5 (11) kW / 20 HP
Suitable overcurrent relays available, see "Accessories"
Pressure range 6.00 - 16.00 bar
3-pole (NC contact)
According to EN 60947
UL / CSA approval
Pressure switch type: HEA AAAA 130A160 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting, corresponding sealing plugs for connections not required see under "Accessories".
| Thread / connection | F4 1/4" aluminum |
| Protection class | IP 54 |
| Motor switching capacity (kW) | 7.5 kW (11kW - on request) |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 640 |
| Pressure range (bar) | 6 - 16 |
| Model range - Pressure switch | MDR 3 |
| On / Off switch button | Yes |
