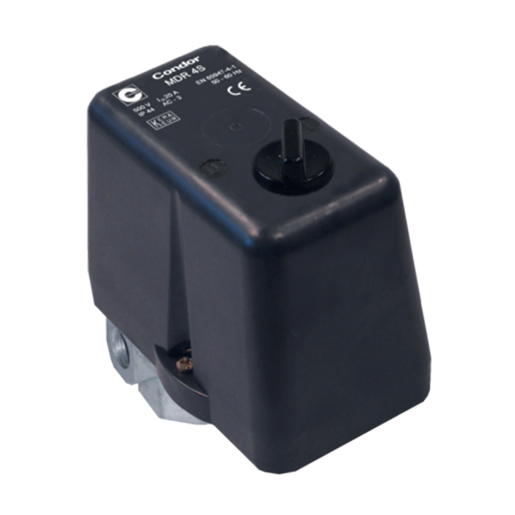

Condor Pressure Switch MDR-4 S/25-EA 8,5 - 25 bar G1/4”
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor pressure switch MDR 4 S/25 bar EA 212676
Three-phase version
Switching capacity 5.5 kW
Pressure range 8.50 - 25.00 bar
3-pole (NC contact)
In accordance with EN 60947
Pressure switch type: IBA AFAA 210A250 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".
| Medium | Air, water |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-opener |
| Rated frequency | 50 Hz / 60 Hz |
| Max. media temperature (°C) | 80 |
| Motor switching capacity (kW) | 5.5 kW |
| Protection class | IP 44 |
| Thread / connection | G 1/4" aluminum internal thread (main pressure connection 1/4" die-cast aluminum) |
| Pressure range (bar) | 8.5 - 25 |
| Weight (in g) | 420 |
| On / Off switch button | Yes |
Similar Products
![[212683] Condor Pressure Switch MDR 4 S/25 EA 8,5-25 bar G 1/2“ Alu](/web/image/product.template/218149/image_128/%5B212683%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-25%20EA%208%2C5-25%20bar%20G%201-2%E2%80%9C%20Alu?unique=d4441e6)

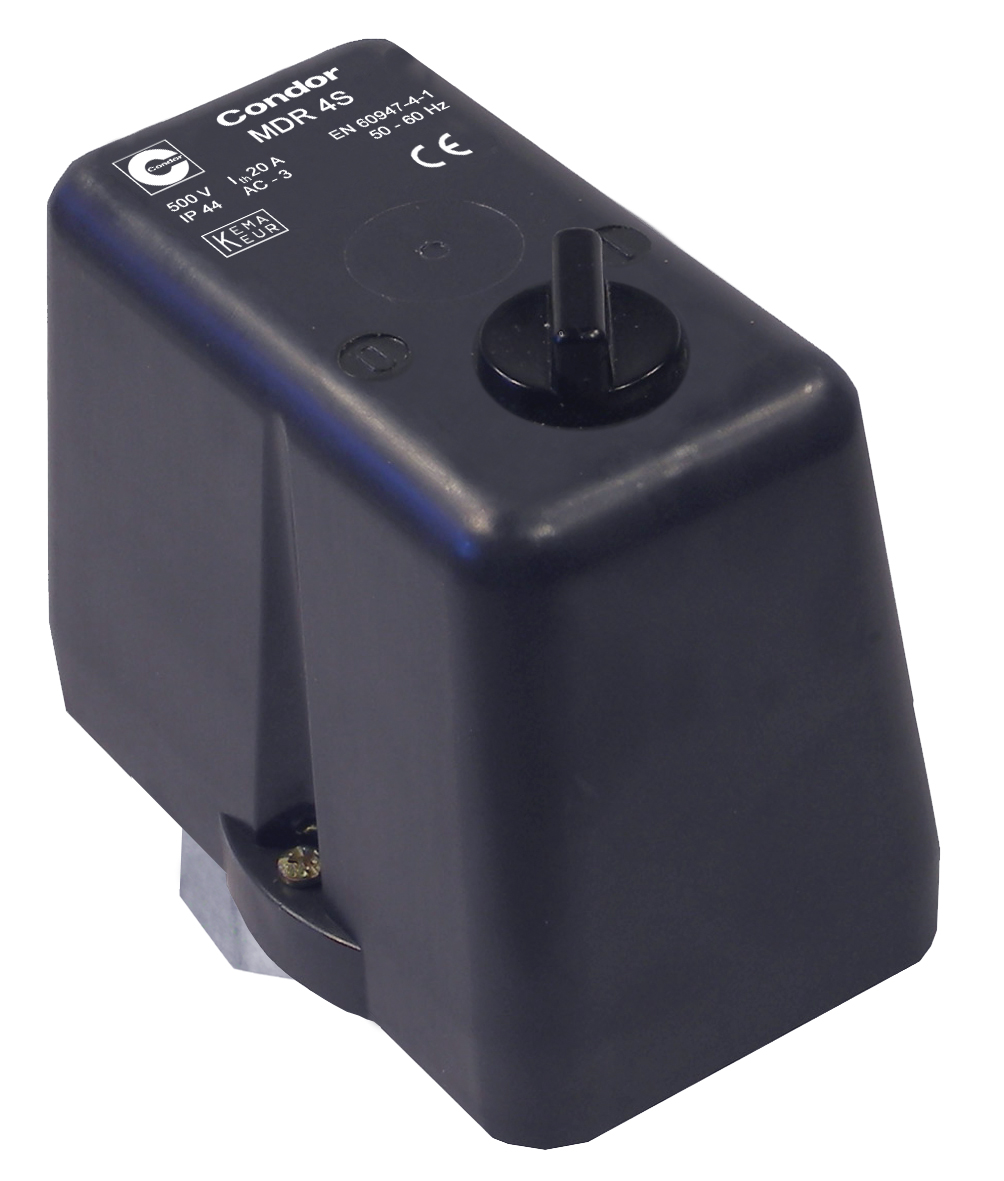

![[212690] Condor Pressure Switch MDR 4 S/25 EA 8,5-25 bar G 1/2" + G 1/4" Alu](/web/image/product.template/218150/image_128/%5B212690%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-25%20EA%208%2C5-25%20bar%20G%201-2%22%20%2B%20G%201-4%22%20Alu?unique=d4441e6)
