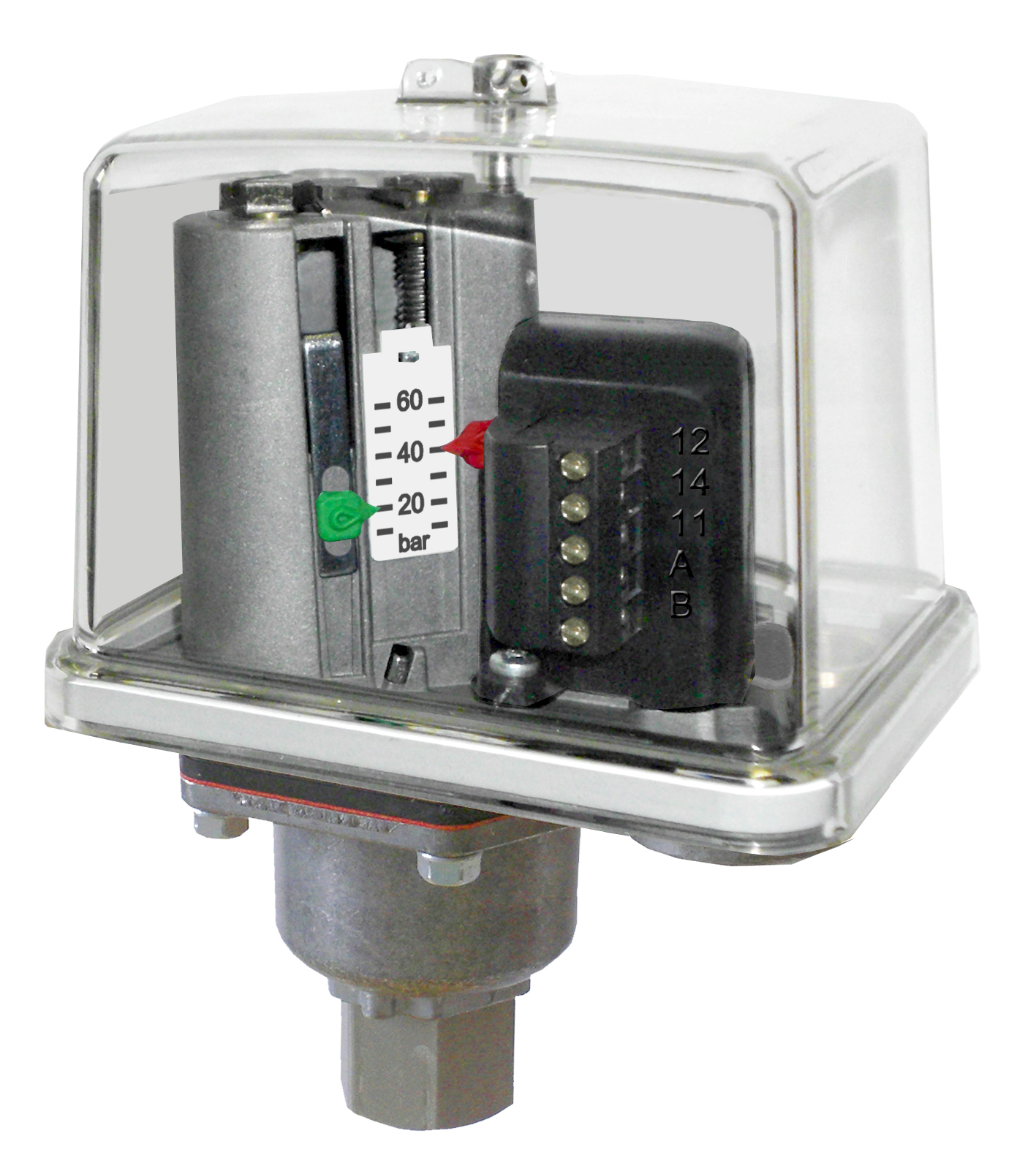

Condor Pressure Switch MDR-F 60 HH-S

Price:

233.24 €

English (US)
  2. Shop
  3. Condor Pressure Switch
  4. Condor Pressure Switch MDR-F 60 HH-S
Condor Small compressor Shego in plastic casing
Condor Small compressor Shego in plastic casing
280.96 € 280.96 €
Condor Pressure Switch MDR-4 S/25-EA 8,5 - 25 bar G1/4”
Condor Pressure Switch MDR-4 S/25-EA 8,5 - 25 bar G1/4”
173.74 € 173.74 €

Condor Pressure Switch MDR-F 60 HH-S

https://staging-filcom-16.laminfra.de/web/image/product.template/217878/image_1920?unique=d4441e6

233.24 € 233.24 EUR 233.24 € VAT Included

196.00 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Condor-Werke

Condor-Werke

The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology

Product no. :

253761

Category :

Condor Pressure Switch

Weight :

0.57 kg

Condor control pressure switch MDR-F 60HH-S 253761

1 changeover contact
Pressure range 8.00 - 60.00 bar
High-pressure switch with plastic piston as pressure transducer element with stainless steel connection
Industrial screw terminal
Pressure connection: G 3/8" female thread
with scale for easy adjustment
Cable glands stepped/choke nipple
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
according to EN 60947

Pressure switch type: HHA SAA A 200A400 see under Documents.
For further information see under Documents.

For the cable glands required for retrofitting and the cover, see "Accessories".

Thread / connection G 3/8" female thread (main pressure connection 3/8"; plastic piston as pressure transducer element and stainless steel connection + throttle)
Protection class IP 54, IP 65
Motor switching capacity (kW) 0.55 kW
Max. media temperature (°C) 70
Current version Alternating current
Type of construction Electro-mechanical
Tension ≤ 250 V
Contact function Changer
Rated frequency 50 Hz / 60 Hz
Weight (in g) 570
Medium Air, water, oil
Switch-on pressure adjustable (bar) 4 ... 52
small pressure difference (bar) 4 8
Switch-off pressure adjustable (bar) 8 ... 60
Model range - Pressure switch MDR F
Variants - Pressure Switch MDR-F..HH

Similar Products

Product Price

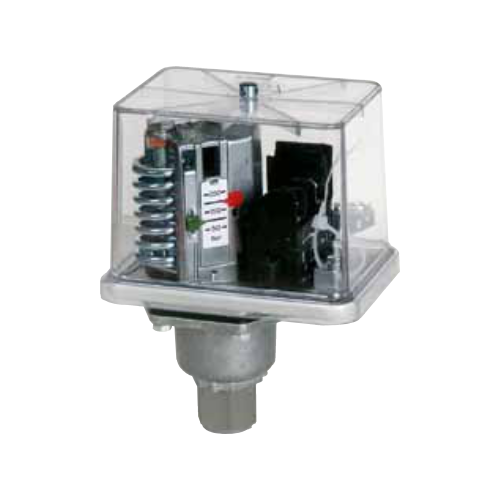

[1010064] TIVAL Pressure switch FF 4-60 PAH 8-60 bar 3/8" stainless steel 212.40 €
