Wortmann Oil-water-seperators model drukosep 1
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment

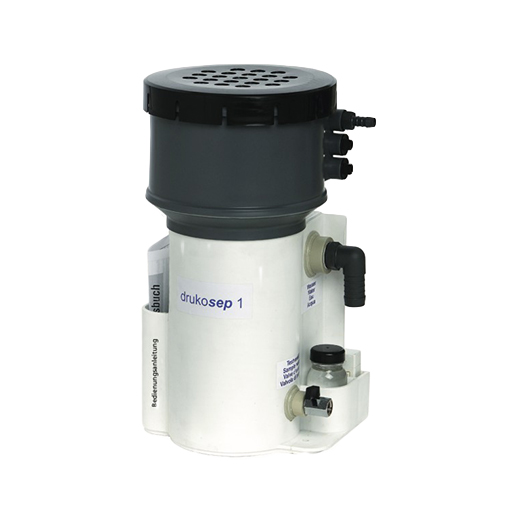

Wortmann Drukosep 1 oil water separator 3201, incl. a filter set.
The Drukosep 1 reliably de-oils the condensate produced through a combination of deflection and calming chamber, as well as a series connection of coalescence and activated carbon filter directly at the point of origin.
The treated condensate can be discharged directly into the sewer system as purified water.
For further technical data, see "Downloads" below.
| Max. Compressor capacity (m³/min) | 1,8 |
| Height (mm) | 445 |
| Width (mm) | 240 |
| Depth (mm) | 240 |
| Condensate inlet connection | 3x 1/2" |
| Water drain connection | 1" |
| Filtration Filter set: Water+exhaust air | sep1W/L |
