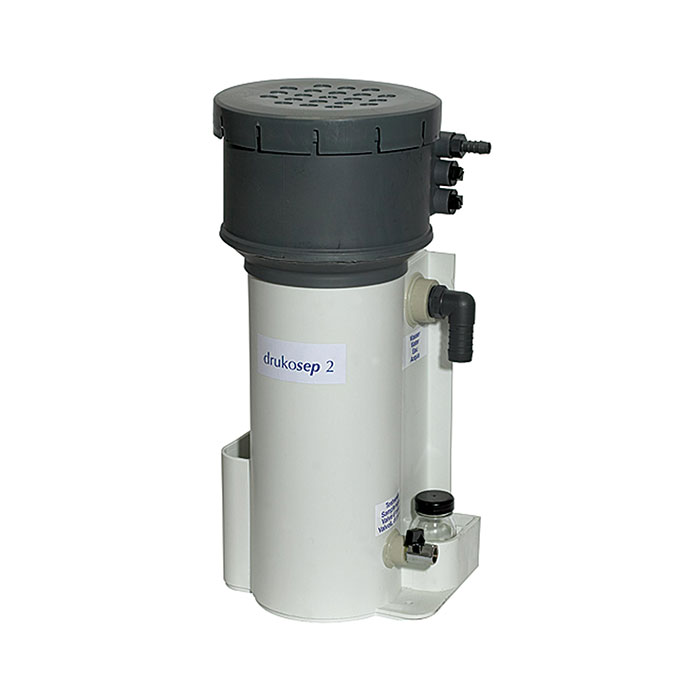

Wortmann Oil-water-seperators model drukosep 2
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment
Wortmann Drukosep 2 oil water separator 3202, incl. a filter set.
The Drukosep 2 reliably de-oils the condensate produced through a combination of deflection and calming chamber, as well as a series connection of coalescence and activated carbon filter directly at the point of origin.
The treated condensate can be discharged directly into the sewage system as purified water.
The Drukosep has building authority approval Z-83.5-14 from the German Institute for Building Technology and does not require approval under water law.
For further technical data, see "Downloads" below.
| Max. Compressor capacity (m³/min) | 2,5 |
| Height (mm) | 545 |
| Width (mm) | 240 |
| Depth (mm) | 240 |
| Condensate inlet connection | 3x 1/2" |
| Water drain connection | 1" |
| Filtration Filter set: Water+exhaust air | sep2W/L |
