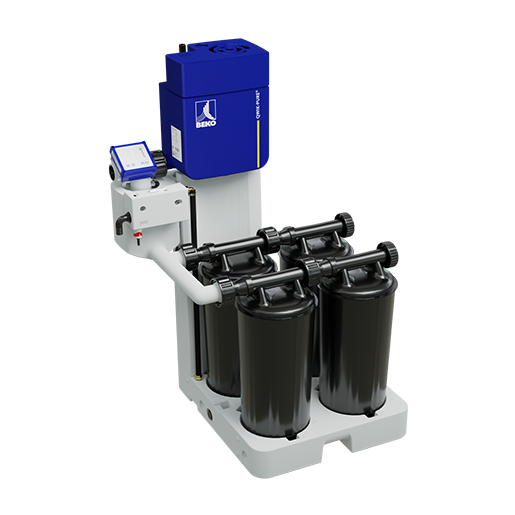

BEKO Active Oil-water separator QWIK-PURE 60 (with 3 meter power cable)

BEKO QWIK-PURE 60: High performance with active condensate treatment

The BEKO oil-water separator model QWIK-PURE 60 with 3-meter power cable (item no. 4055894) is the professional solution for industrial compressed air stations. While conventional separators work purely passively, the QWIK-PURE 60 uses light blasts of compressed air to actively guide the condensate through the four filter cartridges. The factory-fitted 3-meter power cable ensures uncomplicated commissioning and maximum flexibility when setting up in your station.

With a capacity of 60 m³/min, this system offers maximum safety and efficiency for demanding environments.

Your advantages with the active QWIK-PURE 60:

• Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures, even at very high throughput rates.
• Hygienic & safe: The hermetically sealed cartridges protect personnel from contamination. Free oils are trapped directly inside, making maintenance clean and safe.
• Four-cartridge system: The load is distributed evenly over four units, which maximizes the service life of the filters and guarantees constant cleaning performance.
• Flexible connection: The 3-meter power cable allows a simple electrical connection without the need for an external controller for basic operation.
• Ergonomic handling: Despite full saturation, each cartridge weighs a maximum of 25 kg. The inlet tube serves as a sturdy handle for convenient replacement of the individual components.
• Certified legal certainty: The DIBt approval confirms reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).

Maintenance & service for QWIK-PURE 60:

• No pre-soaking: The unit cartridges are ready for immediate use - time-consuming pre-soaking is completely eliminated compared to passive systems.
• Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the cartridge change so that your production continues without interruption.
• Clean change: The integrated bottom valve closes automatically when removed. The cartridges are securely sealed for removal with the blind plugs supplied.
• Sustainability: The filter material of all four cartridges is fully utilized thanks to the active flow. This results in optimum service life and an improved environmental footprint.
