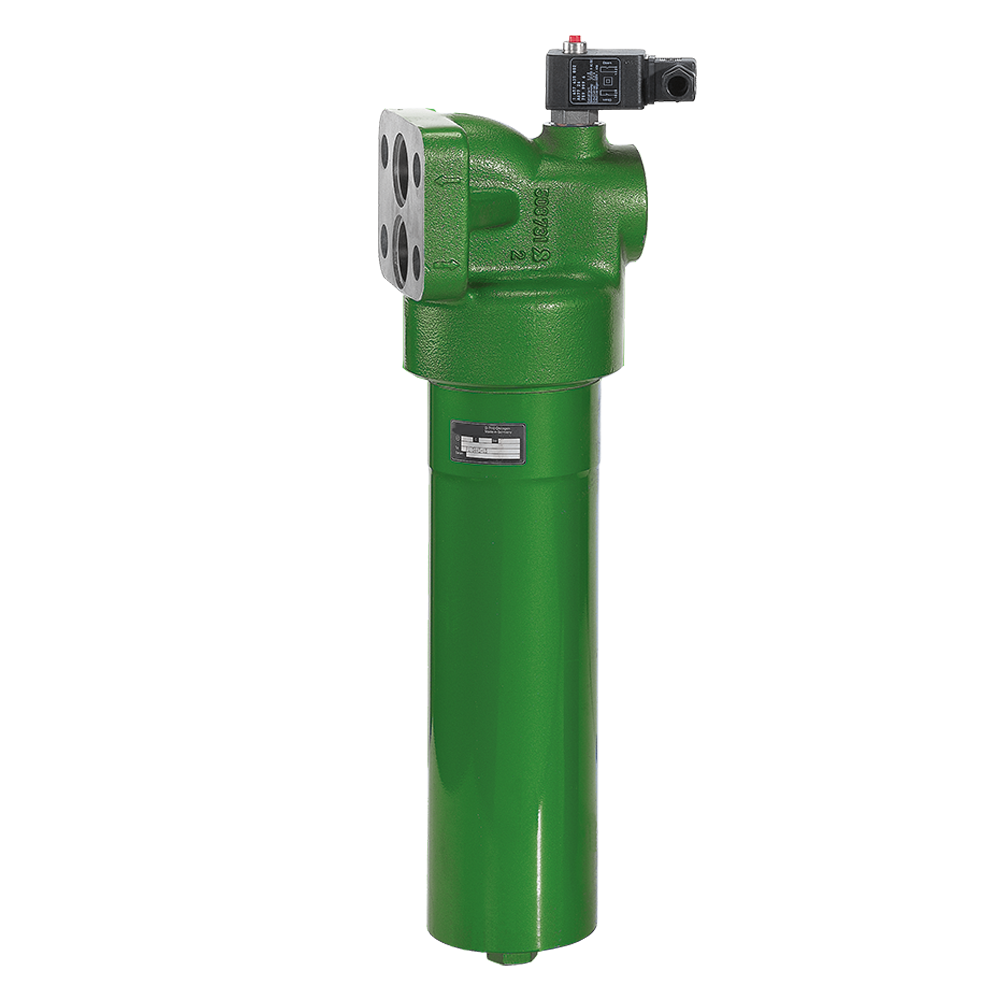

Filtration Group medium pressure filter PI 3408-013
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Connection type | ANFLANSCHBAR |
| Connection size | DN 15 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -10°C bis +120°C |
| Bypass opening pressure (bar) | 7 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 350 |
| Nominal size | 80 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
