FILTREC hydraulic filter WG158
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

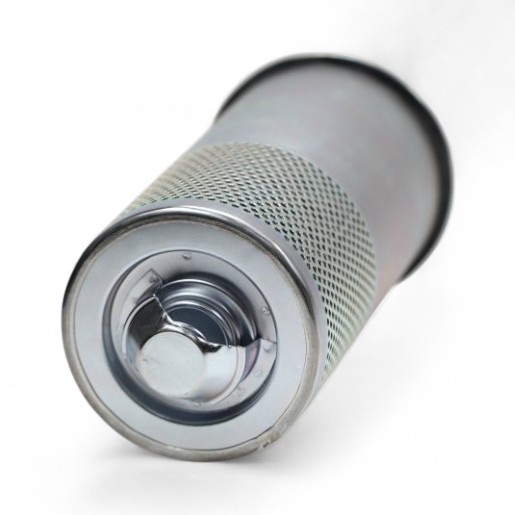

FILTREC filter element WG158 - glass fiber, 12µm
The FILTREC filter element for filter element WG158 with glass fiber filter medium, 12µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Height (mm) | 288 |
| Inner diameter (mm) | 80 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 136.5 mm |
| B | 80 mm |
| C | 149 |
| D | 24 mm |
| E | 288 |
| F | 28 |
