FILTREC hydraulic filter element WT949
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

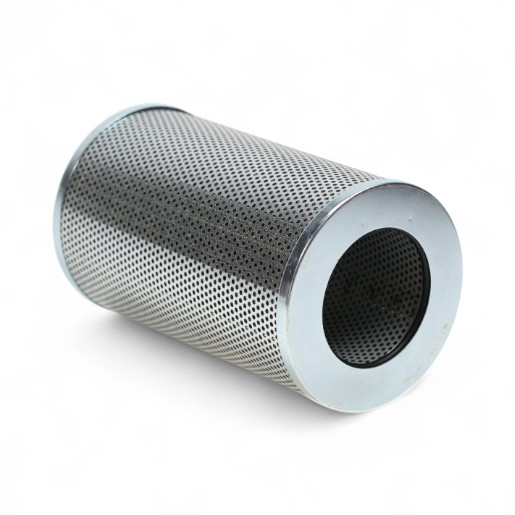

FILTREC filter element WT949 - stainless steel wire mesh, 200µm
The FILTREC filter element for filter element WT949 with stainless steel wire mesh filter medium, 200 µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Outer diameter (mm) | 150 |
| Height (mm) | 250 |
| Inner diameter (mm) | 91.5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 200 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 150 mm |
| B | 91.5 |
| C | 915 |
| D | 250 |
