FILTREC hydraulic filter element WT1428
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

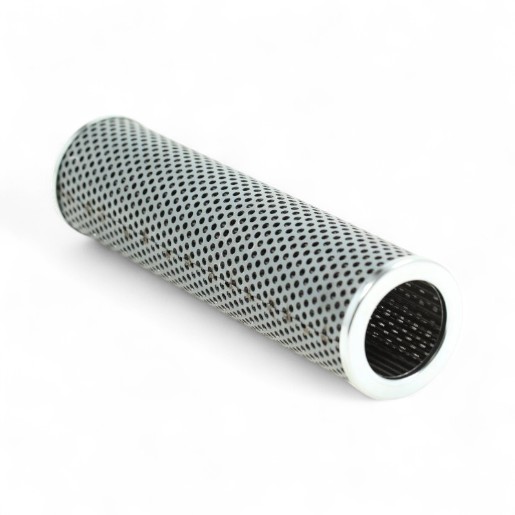

FILTREC filter element WT1428 - stainless steel wire mesh, 60µm
The FILTREC filter element for filter element WT1428 with stainless steel wire mesh filter medium, 60 µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| Outer diameter (mm) | 92 |
| Height (mm) | 350 |
| Inner diameter (mm) | 64 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 60 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

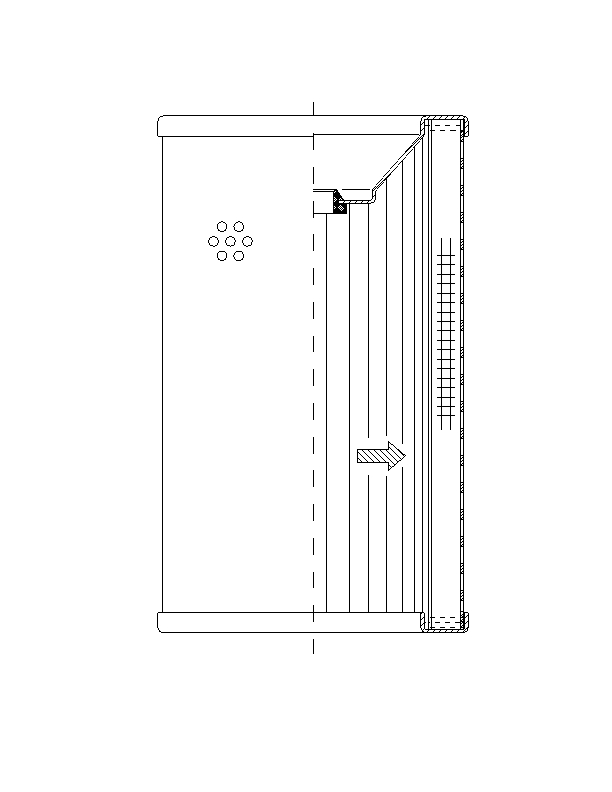

| D1 | 92 |
| D2 (mm) | 64 |
| D3 (mm) | 115 |
| H1 | 350 |
