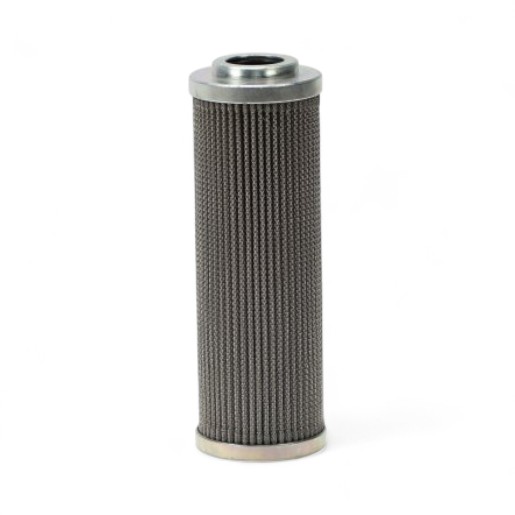

FILTREC hydraulic filter element WT1436
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element WT1436 - stainless steel wire mesh, 100µm
The FILTREC filter element for filter element WT1436 with stainless steel wire mesh filter medium, 100 µm filter fineness, NBR seal and max. 180 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 180 |
| Outer diameter (mm) | 57 |
| Height (mm) | 171 |
| Inner diameter (mm) | 25.2 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 57 |
| B | 25.2 |
| C | 171 |
