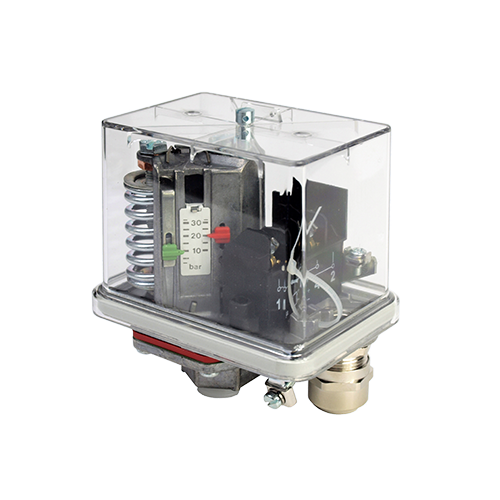

TIVAL Pressure switch FF 4-32 GL DAH 2 - 32 bar / 16A - 230 VAC 3/8" silumin
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-32 GL DAH DNV pressure switch 2 - 32 bar - for shipbuilding & offshore | Art. 1010026
The TIVAL Marine switch is DNV-certified for ships and offshore applications with the highest quality requirements. The upper switching point is adjustable from 2 ... 32, the lower switching point is adjustable from 0.8 ... 30. Connection: G 3/8" Silumin - robust design in matching material variant. Application: Shipbuilding & offshore - certified for maritime requirements. max. operating pressure: 52 bar, medium temperature: up to +70°C. Standards & approvals: DNV TAA00002G6, VDE 0660, IEC 337-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 2 ... 32 |
| Lower switching point adjustable (bar) | 0,8 ... 30 |
| small pressure difference (bar) | 1,2 2 |
| Max. Operating pressure (bar) | 52 |
| Max. Test pressure (bar) | 64 |
| Factory setting (bar) | 10 / 20 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / GL |
