TIVAL Pressure switch FF 4-32 DAH 2-32 bar 3/8" silumin
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-32 DAH pressure switch 2 - 32 bar - for oil, water & air | Art. 1010076
The TIVAL Pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 2 ... 32, the lower switching point is adjustable from 0.8 ... 30. Connection: G 3/8" Silumin - robust design in matching material variant. Application range: Oil, water & air - with proven long-term stability. max. operating pressure: 52 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 2 ... 32 |
| Lower switching point adjustable (bar) | 0,8 ... 30 |
| small pressure difference (bar) | 1,2 2 |
| Max. Operating pressure (bar) | 52 |
| Max. Test pressure (bar) | 64 |
| Factory setting (bar) | 10 / 20 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / DAH(G) |
Similar Products
| Product | Price | ||
|---|---|---|---|

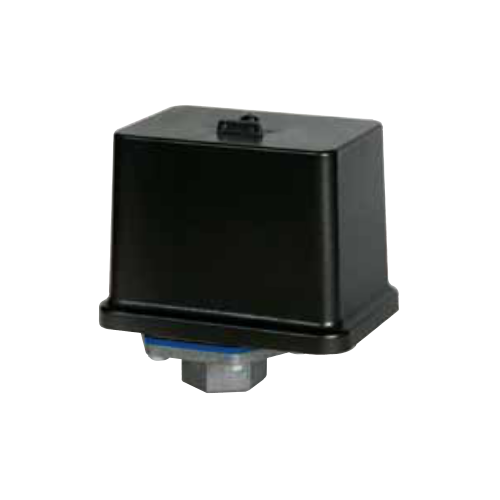

![[1030146] TIVAL Pressure switch FF 4-32 AC DAH 2 - 32 bar 3/8" silumin](/web/image/product.template/149376/image_128/%5B1030146%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20AC%20DAH%202%20-%2032%20bar%203-8%22%20silumin?unique=d4441e6)
|
342.40 € | ||

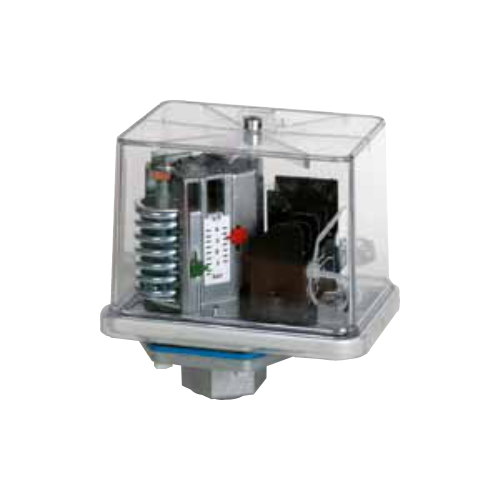

![[1010003] TIVAL pressure switch FF 4-32 DAH G 2 - 32 bar 3/8" Silumin, gold-plated contacts Contacts](/web/image/product.template/149351/image_128/%5B1010003%5D%20TIVAL%20pressure%20switch%20FF%204-32%20DAH%20G%202%20-%2032%20bar%203-8%22%20Silumin%2C%20gold-plated%20contacts%20Contacts?unique=d4441e6)
|
152.10 € | ||

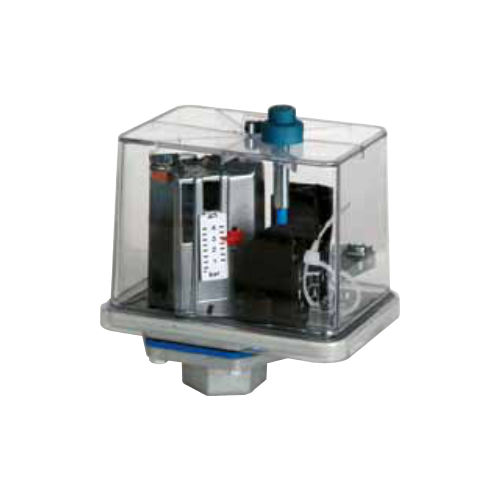

![[1010057] TIVAL Pressure switch FF 4-32 DRH 2 - 32 bar 3/8" silumin, Handreset max.](/web/image/product.template/149359/image_128/%5B1010057%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20DRH%202%20-%2032%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=d4441e6)
|
153.50 € | ||

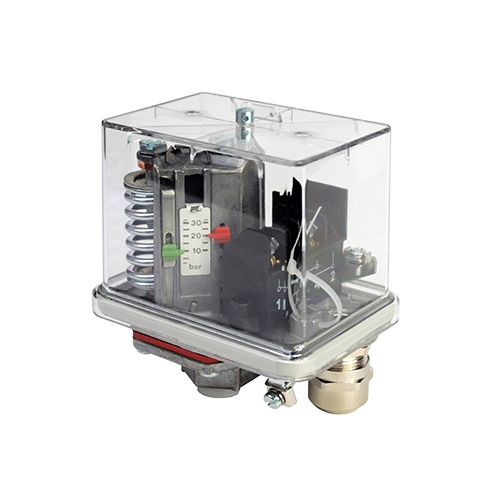

![[1010026] TIVAL Pressure switch FF 4-32 GL DAH 2 - 32 bar / 16A - 230 VAC 3/8" silumin](/web/image/product.template/149317/image_128/%5B1010026%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20GL%20DAH%202%20-%2032%20bar%20-%2016A%20-%20230%20VAC%203-8%22%20silumin?unique=d4441e6)
|
