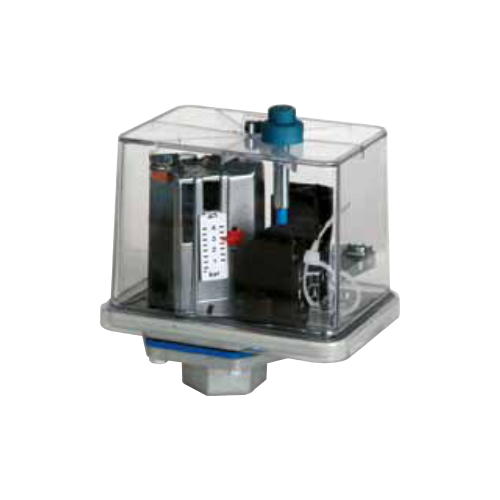

TIVAL Pressure switch FF 4-32 DRH 2 - 32 bar 3/8" silumin, Handreset max.
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-32 DRH pressure switch 2 - 32 bar - with manual reset function | Art. 1010057
The TIVAL Manual reset pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. Connection: G 3/8" silumin - robust design in matching material variant. Application range: Oil, water & air - with proven long-term stability. max. operating pressure: 52 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 2 ... 32 |
| Max. Operating pressure (bar) | 52 |
| Max. Test pressure (bar) | 64 |
| Factory setting (bar) | 20 |
| Pressure connection | G 3/8" Silumin, manual reset max. |
| Switch-back differential approx. (bar) | 4,0 |
| Model range - Pressure switch | FF 4 / DRH |
